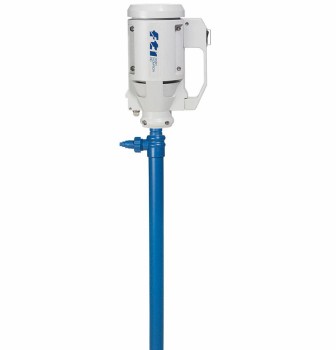

PF Series Drum Pump System #PMPL102


Sold as: 1 each

Electric Pump efficiently transfers large volumes of liquid.

Product Details

Product Description

  • 650 watt continuous duty motor transfers up to 151 litres per minute
  • Splash-proof, IP24 design available in 115V or 230V, 50/60 Hz models with 3.5m cord and plug
  • Quick connection of motor to pump tube with unique collet design; requires no tools
  • Integral motor overload; moving switch to off position automatically resets overload
  • Double wall thermoplastic motor housing reduces noise and vibration
  • 2m long discharge hose directs liquid being pumped into containers, tanks or processes
  • Ideal for transferring liquids from 210-litre drums

Warnings & Restrictions

There are no known warnings and restrictions for this product.


Color: Blue/White

Sold as: 1 each

Weight: 7.8 kg


  • Motor – Steel
  • Tube – Polypropylene
  • Shaft – Inconel
  • Internals – Polypropylene & Teflon®
  • Output Hose – Reinforced PVC

Dimensions (Discharge Hose): 200cm L x 2.5cm ID

Horsepower: 1/2

Maximum Head: 24M (80′ )

Maximum Viscosity: 500 Cps

MaximumLPM: 151

Motor: Motor – 1/2HP, 10,000RPM, 50-60 Hz

Temperature (Maximum): 160°F (71°C)
