PIG® Leak Diverter for Pipes #TLS248


Sold as: 1 each

Protect equipment and personnel — divert leaks from overhead pipes.

Product Details

Product Description

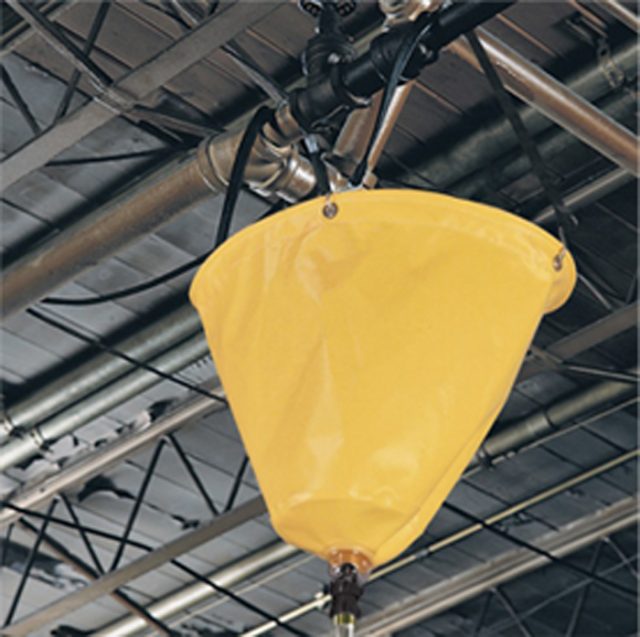

  • Hangs from pipes to divert leaks to floor drains or containers via a drainage hose
  • Includes built-in eyelets and bungee cords — easy to hang
  • Nonpermeable tarp is vinyl-coated for strength and durability; resists punctures, UV and mildew for long life
  • Optional coloured material is also flame-resistant for additional safety
  • 46cm diameter top opening covers large leak area
  • Contoured bottom slopes toward plastic hose connection
  • Flow rate is 12.6L per minute when used with 1.2cm ID Drainage Hose (TLS679)
  • Reusable

Warnings & Restrictions

Chemical Resistance

Limited chemical-resistance; not suitable for temperatures over 190° F/88° C.


Dimensions: int. dia. 46cm x 46cm H
Storage Capacity: 26 L
Dimensions (Bottom): 23cm Dia.
Dimensions (Cord Length): 25cm Bungee Cord Length
Intermittent Exposure: Softens at 200°F (93°C), Melts at 300°F (149°C)
Temperature (Continuous Exposure Max): 150°F (65°C)
Temperature (Valve Max): 280°F (138°C)
Sold as: 1 each
Weight: 0.9 kg

  • Coupling – High-Density Polyethylene (HDPE)
  • Clear – 24 oz./sq yd, 100% PVC
  • Grey/Yellow – 13oz./sq yd, 16mil thick; 67% PVC/33% Polyester


  • 1 – 46cm Dia x 46cm H Leak Diverter
  • 4 – Grommets
  • 1 – 1.9cm Dia Drain Fitting
  • 4 – 36cm L Rubber Hanging Straps

Technical Documents

» Product Data Sheet (PDS)
